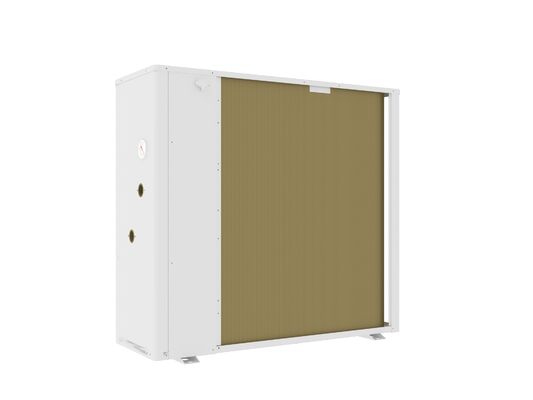

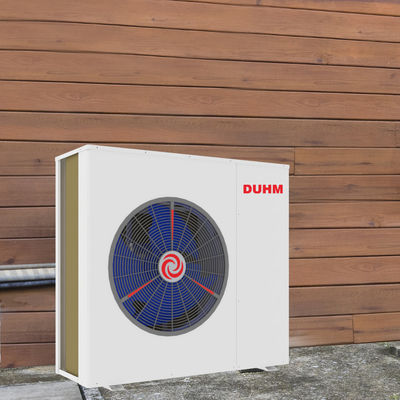

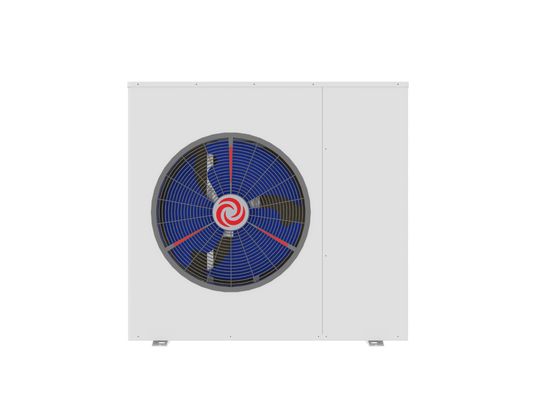

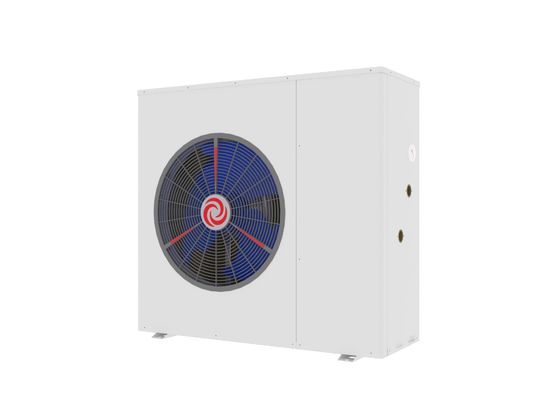

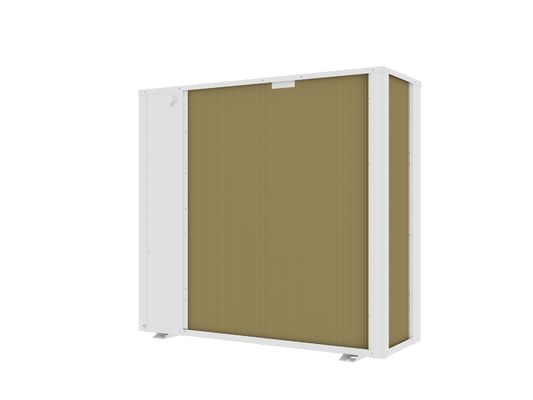

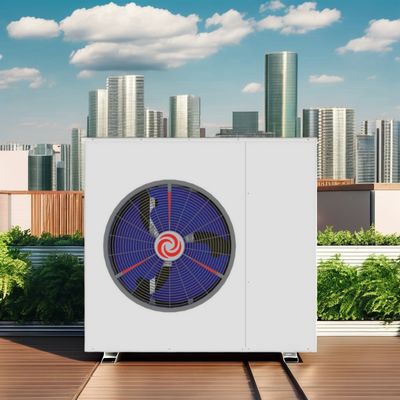

9 kw Air to Water R410A Heat Pump Water Heater Wrmepumpe with Flexible Installation

Brand Name:	DUHM
Model Number:	WBC-9.0H-B-S
MOQ:	10
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T，L/C AT SIGHT

Detail Information

Product Description

Detail Information

Place of Origin:

China

After-sales Service Provided:

Free Spare Parts

Warranty:

1 Year

Operating Language:

English

Application:

Garage, Household

Power Source:

Electric

App-Controlled:

Logo/pattern:

Silk Screen Printing, Laser Printing

Type:

Air Source Heat Pump

Installation:

Freestanding

Storage / Tankless:

Instant / Tankless

Housing Material:

Metal, Galvanized Steel With Powder Coated

Bathroom

Product Name:

R410A Hot Water Heater

Refrigerant:

R410A

Heating Source:

Air To Water Heat Pump

Function:

Domestic Hot Water

Heating Capacity(A20/15℃,W 15/55℃):

9.25 KW

Compressor:

Vortex

Power Supply:

220~240V/1/50Hz/

Operating Ambient Temperature:

-10°C~45°C

Water Flow:

1.59 M³/h

Supply Ability:

800 SETS/DAY

Highlight:

9 kw heat pump water heater

R410A heat pump water heater

heat pump water heater Wrmepumpe

Product Description

9 kw Air to Water R410A Heat Pump Water Heater Wrmepumpe with Flexible Installation

Model						WBC-9.0H-B	WBC-17.5H-B-S	WBC-35.0H-B-S	WBC-50.0H-B-S
Heating Condition 1-Ambient Temp. (DB/WB): 20/15℃, Water Temp. (In/Out): 15/55℃	Heating capacity			kW	9.25	17.15	34.35	47.05
		COP			W/W	4.08	4.07	4.08	3.82
		Hot Water Volume			L/H	199	369	738	1011
		Power input			kW	2.27	4.21	8.42	12.32
		Current input			A	10.85	7.54	15.06	22.03
Heating Condition 2-Ambient Temp. (DB/WB): 7/6℃, Water Temp. (In/Out): 9/55℃	Heating capacity			kW	7.71	14.29	27.48	38.57
		COP			W/W	3.2	3.15	3.18	3.21
		Power input			kW	2.41	4.54	8.64	12.02
		Current input			A	11.53	8.12	15.46	21.49
Max power input					kW	3.40	6.32	12.63	18.48
Max current input					A	16.27	11.31	22.59	33.10
Power supply					V~Hz	220V ~ 50Hz	380V 3N~ 50Hz			380V 3N~ 50Hz	380V 3N~ 50Hz
Operating ambient temperature					°C	-10~45
Water Flow Volume					m³/h	1.59	2.95	5.91	8.09
Water Pressure Drop					kPa	40	40	60	60
Outlet Water Temp.					°C	55
Max.Outlet Water Temp.					°C	60
Water Connection					inch	G1"(DN25)		G1"(DN25)	G1.5"(DN40)		G1.5"(DN40)
Water pump					qty	0				0	0	0
Compressor					qty	1				1	1	1
Fan motor					qty	1		1	2		2
Noise					dB(A)	52	53	54	55
Net dimension			L / W / H	mm	1120430690	10203801050	11204301600		11204301600
Package dimension			L / W / H	mm	1200480810	11004301170	12004801735		12004801735
Net weight					kg	77	92	197	197
