Swimming Pool Heat Pump
>
Commercial and Residential Swimming Pool Heat Pump Rotary Compressor R410A Top Blow on/off with Titanium Coil Condenser

Commercial and Residential Swimming Pool Heat Pump Rotary Compressor R410A Top Blow on/off with Titanium Coil Condenser

Detail Information
Model NO.:
A3
Heat Source Type:
Air Source Heat Pump
Operating Air Temperature:
-5~43
Heat Capacity:
4.5-14kw
Application:
Villa Family, Sauna And Swimming Pool, Hotels, Gym
Power Supply (V/Hz):
220-240V/1pH/50Hz
Compressor:
Rotary
Condenser:
Titanium Coil
Unit Type:
On/off Top Blow
Transport Package:
Factory Standard
Specification:
755*258*500mm
Trademark:
Wotech
Origin:
China
HS Code:
84186120
Customization:
Available
Certification:
RoHS, CB, CCC, ISO9001, CE
Working Medium:
R32
Product Description
R410a Top Blow On/Off Swimming Pool Heat Pump for both commercial and residential

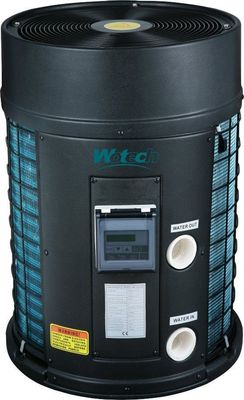

Commercial and Residential Swimming Pool Heat Pump Rotary Compressor R410A Top Blow on/off with Titanium Coil Condenser 0
Features:
1.Anti-UV Plastic ABS corrosion resistant casing material with injection model or normal plastic model
2.Patented corrosion resistant titanium exchanger
3.Environmental friendly
4.LCD or colorful LED controller for options.
5.Re-start memory
6.Heating and cooling with reversible defrosting.
7.Super quiet

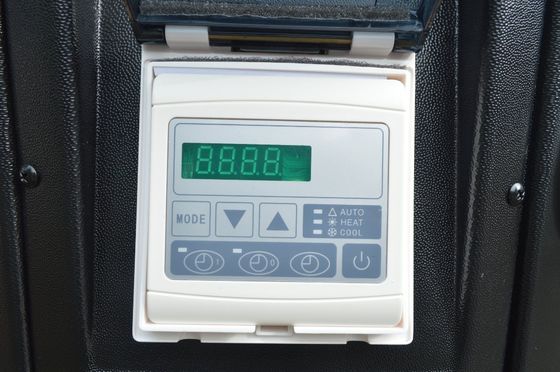

8.Remote and intelligent controller design with Celsius or Fahrenheit temperature display for options.

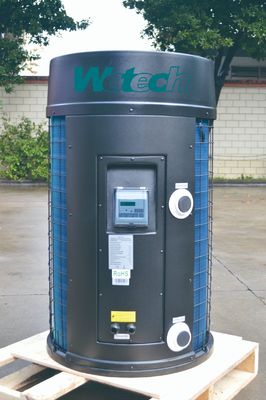

Commercial and Residential Swimming Pool Heat Pump Rotary Compressor R410A Top Blow on/off with Titanium Coil Condenser 1
Technical Parameter:
CODE  WBR-4.5H-A3 WBR-7.8H-A3 WBR-12.5H-A3 WBR-14.0H-A3
Heating Performance Condition: Air 27ºC, Water 27ºC
*Heating Capacity   KW 4.26 7.4 11.13 12.77
*Input Power KW 0.89 1.44 2.11 2.55
*Running Current  A 4.3 6.9 10.1 12.2
*COP - 4.79 5.14 5.28 5
Heating Performance Condition: Air 15ºC, Water 26ºC
**Heating Capacity  KW 3.43 5.63 8.03 9.31
**COP - 3.89 4.09 4.27 4.09
Power Supply  V/PH/HZ 220-240V/1PH/50HZ
Max Heating Current  A   5.1 8.2 12 14.5
condenser - Titanium Coil
Compressor  - Rotary
Noise dB(A)  (1 m) 53 55 57 58
Water Connection   inch 1-1/2 1-1/2 1-1/2 1-1/2
Average Flow  m³/h  1.9 3.4 5.4 6.0
Net Dimension  mm 455*455*605 550*550*800 570*570*940 570*570*940
Weight  kg 29/34 42/48 55/62 59/66
Remarks:The Specifications are subject to changes without notice
Key Components:

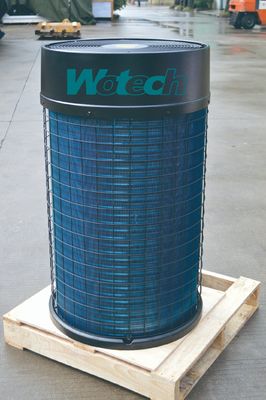

Commercial and Residential Swimming Pool Heat Pump Rotary Compressor R410A Top Blow on/off with Titanium Coil Condenser 2

Wotech Project Cases:
Commercial and Residential Swimming Pool Heat Pump Rotary Compressor R410A Top Blow on/off with Titanium Coil Condenser 3
Commercial and Residential Swimming Pool Heat Pump Rotary Compressor R410A Top Blow on/off with Titanium Coil Condenser 4


Manufacturing & Laboratories:
Commercial and Residential Swimming Pool Heat Pump Rotary Compressor R410A Top Blow on/off with Titanium Coil Condenser 5
