Features:

1.Anti-UV Plastic ABS corrosion resistant casing Compact size, easy to install

2.Patented corrosion resistant titanium exchanger

3.Environmental friendly

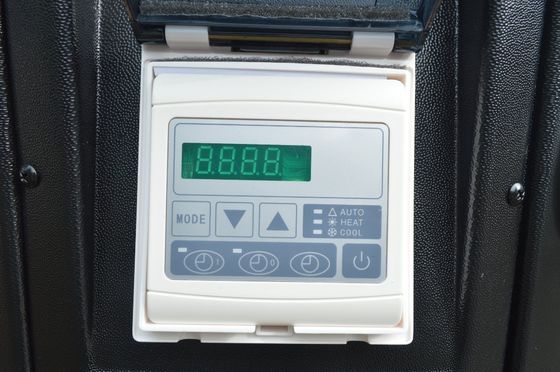

4.LCD or colorful LED controller for options.

5.Re-start memory

6.Heating and cooling with reversible defrosting.

7.Super quiet

Technical Parameter:

CODE		WBR-4.5H-A3	WBR-7.8H-A3	WBR-12.5H-A3	WBR-14.0H-A3
Heating Performance Condition: Air 27ºC, Water 27ºC
*Heating Capacity	KW	4.26	7.4	11.13	12.77
*Input Power	KW	0.89	1.44	2.11	2.55
*Running Current	A	4.3	6.9	10.1	12.2
*COP	-	4.79	5.14	5.28	5
Heating Performance Condition: Air 15ºC, Water 26ºC
**Heating Capacity	KW	3.43	5.63	8.03	9.31
**COP	-	3.89	4.09	4.27	4.09
Power Supply	V/PH/HZ	220-240V/1PH/50HZ
Max Heating Current	A	5.1	8.2	12	14.5
condenser	-	Titanium Coil
Compressor	-	Rotary
Noise	dB(A) (1 m)	53	55	57	58
Water Connection	inch	1-1/2	1-1/2	1-1/2	1-1/2
Average Flow	m³/h	1.9	3.4	5.4	6.0
Net Dimension	mm	455455605	550550800	570570940	570570940
Weight	kg	29/34	42/48	55/62	59/66
Remarks:The Specifications are subject to changes without notice

Key Components:

Wotech Project Cases:

Manufacturing & Laboratories:

Tags:

r32 swimming pool heat pump

swimming pool air source heat pump

pool heater air source heat pump

Products Details

Home > Products >

Swimming Pool Heat Pump

Plastic Top Blow on/off Swimming Pool Heat Pump with R410A Working Medium Customization

All Category

House Heating Heat Pump

R290 Inverter Monoblock Heat Pump

R32 Inverter Monoblock Heat Pump

R32 Inverter Split Heat Pump

Sanitary Hot Water Heat Pump

R410a Residential Hot Water Heat Pump

R410a Commercial Hot Water Heat Pump

R134a Commercial Hot Water Heat Pump

Swimming Pool Heat Pump

R32 Residential Fixed Speed Swimming Pool Heat Pump

R32 Commercial Fixed Speed Swimming Pool Heat Pump

R32 Residential Inverter Swimming Pool Heat pump

R32 Commercial Inverter Swimming Pool Heat pump

R410a Commercial Fixed Speed Swimming Pool Heat Pump

R410a Residential Fixed Speed Swimming Pool Heat Pump

Industrial Dehumidifier

Ground and Water Source Heat Pump

Ice Bath Chiller

Evaporative Cooling Heat Pump

Plastic Top Blow on/off Swimming Pool Heat Pump with R410A Working Medium Customization

Detail Information

Product Description

Detail Information

Model NO.:

Heat Source Type:

Air Source Heat Pump

Condenser:

Titanium Coil

Compressor:

Rotary

Average Flow:

1.9m³/H

Transport Package:

Factory Standard

Specification:

470*470*635mm

Trademark:

Wotech

Origin:

China

HS Code:

84186120

Customization:

Available

Certification:

RoHS, CB, CCC, ISO9001, CE

Working Medium:

R410A

Product Description

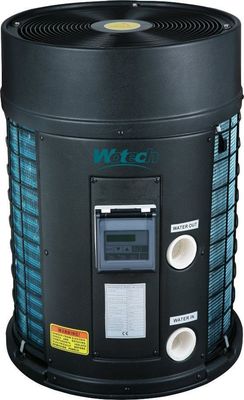

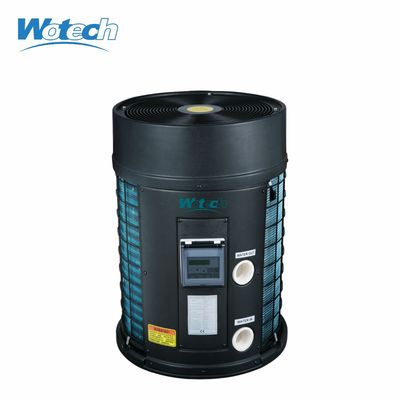

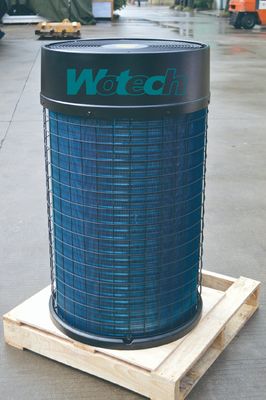

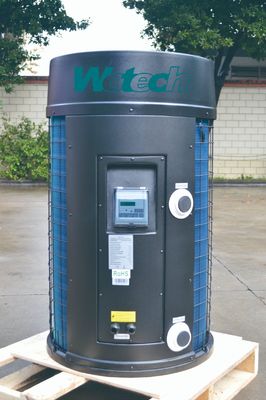

Plastic Top blow ON/OFF Swimming Pool Heat Pump

Technical Parameter:

CODE		WBR-4.5H-A3	WBR-7.8H-A3	WBR-12.5H-A3	WBR-14.0H-A3
Heating Performance Condition: Air 27ºC, Water 27ºC
*Heating Capacity	KW	4.26	7.4	11.13	12.77
*Input Power	KW	0.89	1.44	2.11	2.55
*Running Current	A	4.3	6.9	10.1	12.2
*COP	-	4.79	5.14	5.28	5
Heating Performance Condition: Air 15ºC, Water 26ºC
**Heating Capacity	KW	3.43	5.63	8.03	9.31
**COP	-	3.89	4.09	4.27	4.09
Power Supply	V/PH/HZ	220-240V/1PH/50HZ
Max Heating Current	A	5.1	8.2	12	14.5
condenser	-	Titanium Coil
Compressor	-	Rotary
Noise	dB(A) (1 m)	53	55	57	58
Water Connection	inch	1-1/2	1-1/2	1-1/2	1-1/2
Average Flow	m³/h	1.9	3.4	5.4	6.0
Net Dimension	mm	455455605	550550800	570570940	570570940
Weight	kg	29/34	42/48	55/62	59/66
Remarks:The Specifications are subject to changes without notice
